MP SERIES TUBE HEATER PARTS
(Manufactured 10/2011 to Present)
RE-VERBER-RAY

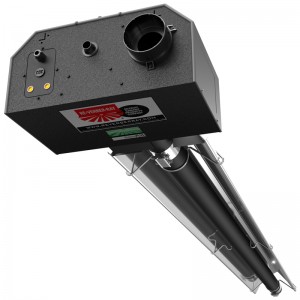

MP SERIES TUBE HEATER
(Manufactured 10/11 to Present)
Common Components |
||
| Part Description | Original Part Number |
Replacement |
| Fan | TP-3015 | TP-3015 |
| Air Pressure Switch | See Below | See Below |
| Circuit Board | TP-351A | TP-351A |
| Wire Harness | TP-352A | TP-352A |
| Modulating Circuit Board | TP-3250 | TP-3250 |
| Modulating Wire Harness | TP-3254 | TP-3254 |
| Ignition Device | TP-50 | TP-50 |
| 80-115 MBH Low Stainless Steel Burner (Natural & Propane Gas) | TP-3072 | TP-3072 |
| 150 MBH Mid Stainless Steel Burner (Natural & Propane Gas) | TP-201B | TP-201B |
| 200 MBH High Stainless Steel Burner (Natural & Propane Gas) | TP-3074 | TP-3074 |
| Natural Gas Valve | TP-3240 | TP-3240 |
| Propane Gas Valve | TP-3241 | TP-3241 |
| Transformer | TP-826 | TP-826 |
| 24V Yellow Operational Indicator Light | TP-828 | TP-828 |
| 120V Yellow Operational Indicator Light | TP-328 | TP-328 |
| Flame Rod | TP-222 | TP-222 |
| 16″ Burner Tube | TP-3380 | TP-3380 |
| Combustion Chamber1, 80-115 MBH (Coated Aluminized Steel) | TP-26A | TP-26A |
| Combustion Chamber1, 150-200 MBH (Titanium Coated Steel) | TP-26B | TP-26B |
| Combustion Chamber1, 80-150 MBH (409 Stainless Steel) | TP-26E | TP-26E |
| Radiant Tubes (Coated Aluminized Steel) | TP-26A | TP-26A |
| Radiant Tubes (304 Stainless Steel) | TP-26D | TP-26D |
| 10 Ft. Highly Polished Aluminum Reflector Section2 | TP-20C | TP-20C |
| Baffle | TP-65I | TP-65I |
1 Refers to the first 10′ section of tubing downstream of burner.
2 Models with stainless steel upgrades require TP-20D 10 ft. reflector sections.
Pressure Switches |
|||
| BTU/H Range (x1000) | 80 | 115 | 150-200 |
| Part Number | TP-264B | TP-264E | TP-1264A |
| X-Ref., IS220- | -10051F5166 | -16051F5169 | |
| Normal Setting | Open | Open | Open |
